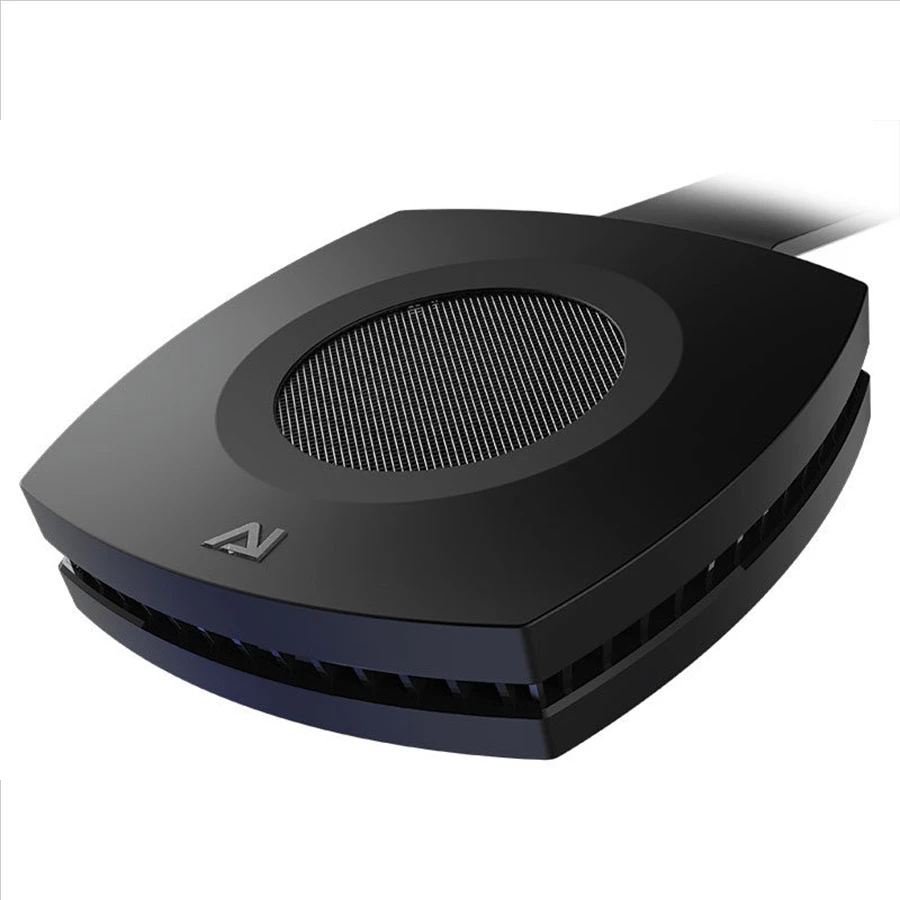

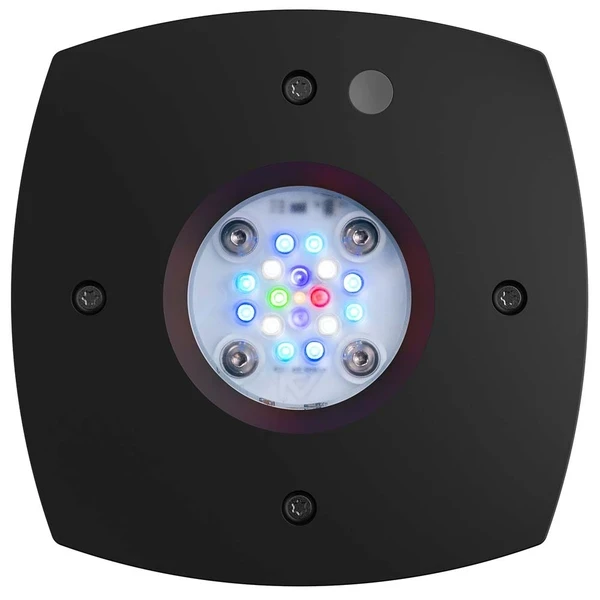

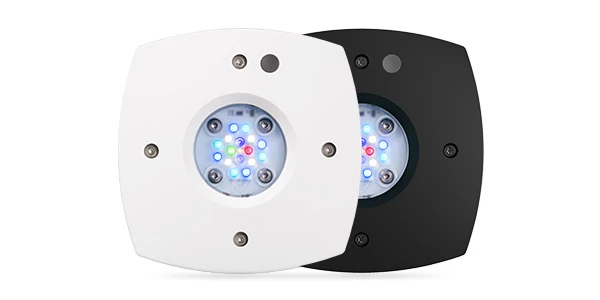

Aqua Illumination Prime 16HD Reef LED Black

HD Power

No longer are you limited to using a fixed amount of power per channel, the Prime 16HD dynamically adjusts power available to each color, borrowing power from the colors you’re not utilizing. Giving you the most vivid spectrum your tank has ever seen.

HD Spectrum

The Prime 16HD Series is capable of producing a limitless number of spectral combinations to fit your tank’s exacting needs.

Dedicated Moonlight

A dedicated moonlight channel simulates natural lunar color and intensity.

Simple Built-in Control

All AI devices include smart control standard. Use the myAI® app on any iOS or Android device to easily set up or program your AI equipment.

The World’s Most Popular Reef LEDs

The newest innovation in the Prime line from AquaIllumination®, the Prime 16HD Series brings more power and color where you want it, plus the freedom to use your smartphone as a controller.

myAI®

Dashboard

Each tank has a dashboard with easy-to-access quick keys for turning your lights on/off or changing the mode.

Schedule Mode

Our intuitive schedule mode is so easy to program you’ll have plenty of time for more important tasks, like enjoying your corals.

Schedule Mode: Easy Setup

Want an even easier way to program your lights? We’ve got you covered. Our Easy Setup wizard is a breeze.

Manual Mode: Kelvin

Set your lights to the exact color temperature your corals need with our handy Kelvin wheel.

Acclimation

Installing new equipment can be stressful for your livestock. Acclimation mode provides the gentle transition they need to adapt and thrive.

Tank Mount

Easily mount your AI Prime® on your rimmed or rimless tank with the adjustable Prime Tank Mount. The innovative ball joint makes it simple to tilt and turn your Prime to get the optimal light for your corals. Made of high-quality brushed aluminum it will look great on any setup. Comes in black or silver.

Hanging Kit

The Prime Hanging Kit from AI is an elegant way to suspend your light above your tank. The unique ball joint makes it a snap to tilt and turn your Prime for optimal light coverage. Made of high-quality brushed aluminum in black or silver.

Flex Arm

A silicone-coated flex arm makes for an attractive and sturdy solution for mounting your AI Prime™. Our most flexible mount for a rimmed or rimless tank. Wire-management clips are included.
Available in 12 and 18in. lengths.

Power Output

With a spread of 24″ x 24″, the AI Prime® 16HD has a peak PAR of 100µMol at a depth of 24 inches, perfect for the small to medium reef tank. Drawing a maximum of 55 watts from the wall, it follows in the family’s efficient footsteps.

Optics

The AI Prime® 16 comes standard with TIR lenses giving you the best balance of power and spread. Our lens optics are custom designed, boasting greater than 90% optical efficiency and including a diffuse exit surface to provide improved color blending.

LEDs

The AI Prime® 16 utilizes the latest LED technology from leading manufacturers, arranged to provide the best performance.

4 – Cool White
4 – Blue
4 – Royal Blue
1 – Photo Red
1 – Green
1 – Violet
1 – UV
1 – Moonlight

Technical Specifications

Dimensions
Length 12.4cm
Width 12.4cm
Height 3.4cm
Weight 0.43kg

Power Specifications
Power Consumption 59W at full power
Universal Input Range 100 to 240VAC / 50-60Hz
Cable Length 6.1m
PSU Regulatory Compliance UL, CE & RoHS

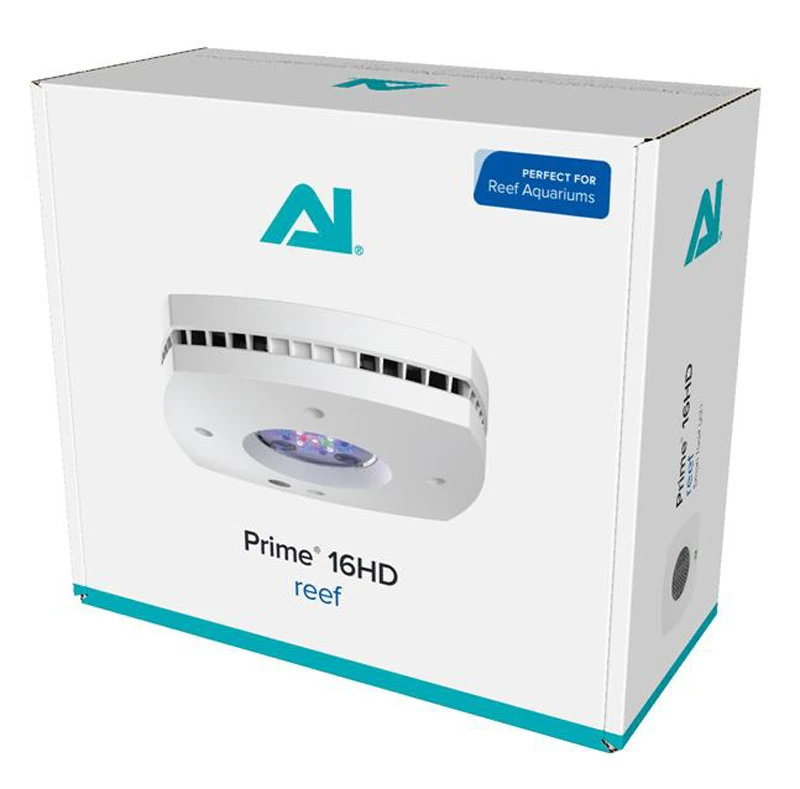

What’s in the Box

• AI Prime® 16HD
• Power Adapter
• Quick Start Guide
