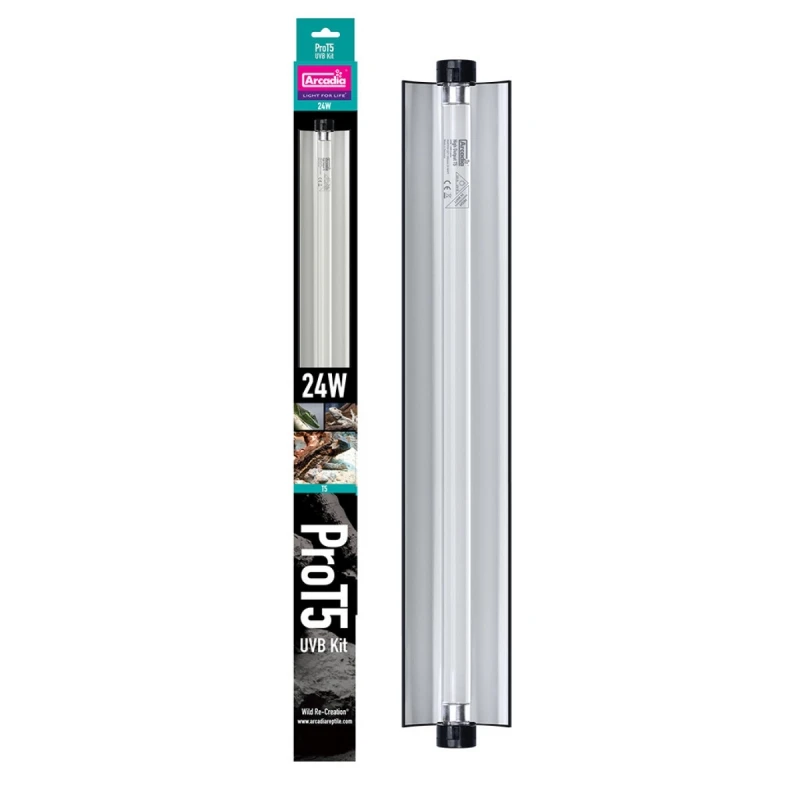

Arcadia Pro T5 24W UVB Lighting Kit + 12% UVB Lamp

ProT5 uses the very finest electrical components to ensure safe running and long lamp life.
Each bar has inbuilt over-voltage, over current, over heating and short circuit protection.
ProT5 is Teflon free and free from any reflector coatings that absorb UV.

• Link up to 10 Kits

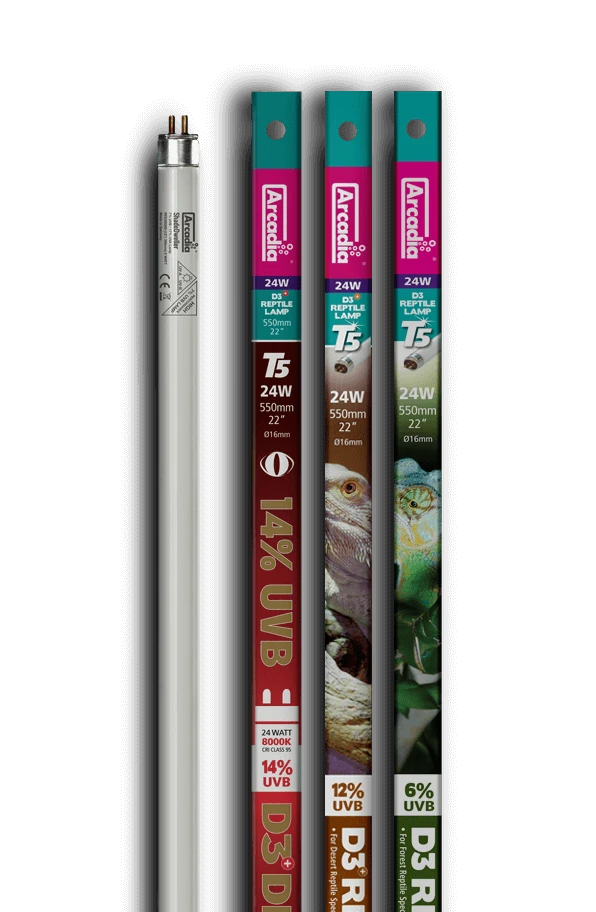

• Choice of UV-B T5 lamp included, 12% or 14%
• Easy to fit inside vivariums or over mesh
• Lamps made in Germany by the worlds experts
• Flicker free (T5)

Easy Set Up
This easy-to-use Kit can be fixed easily inside of a vivarium, rested upon a wire meshed glassed terrarium, hung above an enclosure or hung within (where safe to do so).

Its sleek design and specially curved reflector will ensure that you take up less space but project as much light forward as possible.

Fixed easily inside of a Vivarium using the clips supplied.

Rested upon a wire meshed glassed terrarium.

Installation:

1. Screw in clips

2. Slot in the ProT5

3. Insert lamp

4. Switch on

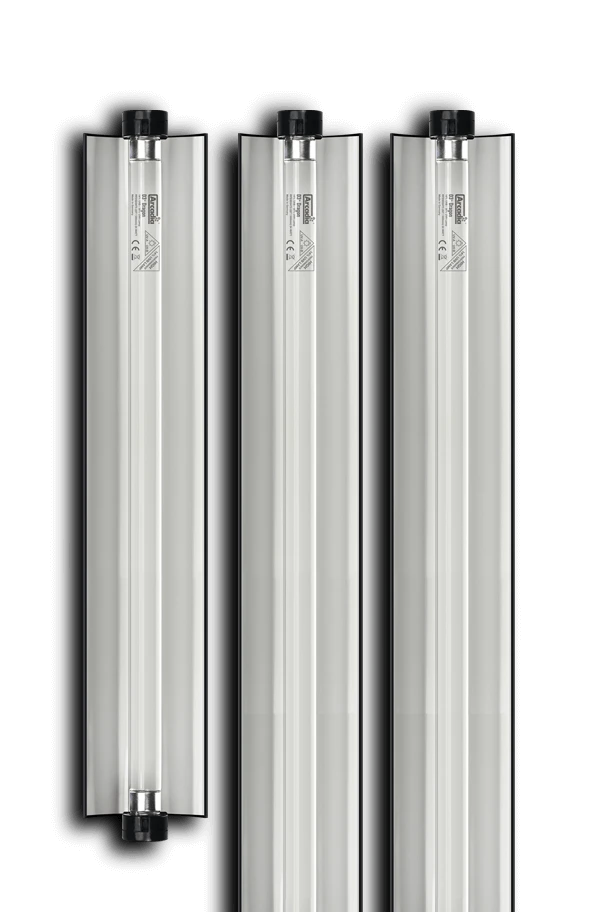

ProT5 is ‘Small but Mighty’

This is due to the type of reflector that is included.
Easy to remove and clean, the reflector has 2 angles of reflection from each curve.
This means that it projects high levels of UV-rich light directly beneath unit at around 12”/30cm to create a basking zone but then light also spreads out over distance to provides a wide flood.
This will allow you to create a suitable UV-B provision for any species and over a suitably wide area.

Ultra Violet Index

Height	6% UV-B	12% UV-B	14% UV-B
300mm / 12″	4.50	8.50	10.50
380mm / 15″	3.60	6.50	7.00
500mm / 20″	2.50	3.80	4.60
600mm / 24″	1.20	2.40	3.2

UVI measurements taken at the very centre of the strongest point using a solar meter 6.5.
Minimum distance from lamp to reptile is 250mm/10”.

Linking Multiple Units
The link cable will allow for up to 10 light units from one power source, including the Jungle Dawn LED BAR kit.

24w / 570mm (22.5″)
Perfect for 60cm/2 foot + enclosures.

RARTP24D	14%
RARTP24R	12%

39w / 870mm (35″)
Perfect for enclosures from 85cm+/3 foot wide.

RARTP39D	14%
RARTP39R	12%

54w / 1170mm (46″)
Perfect for enclosures more than 120cm +/ 4 foot.

RARTP54D	14%
RARTP54R	12%
