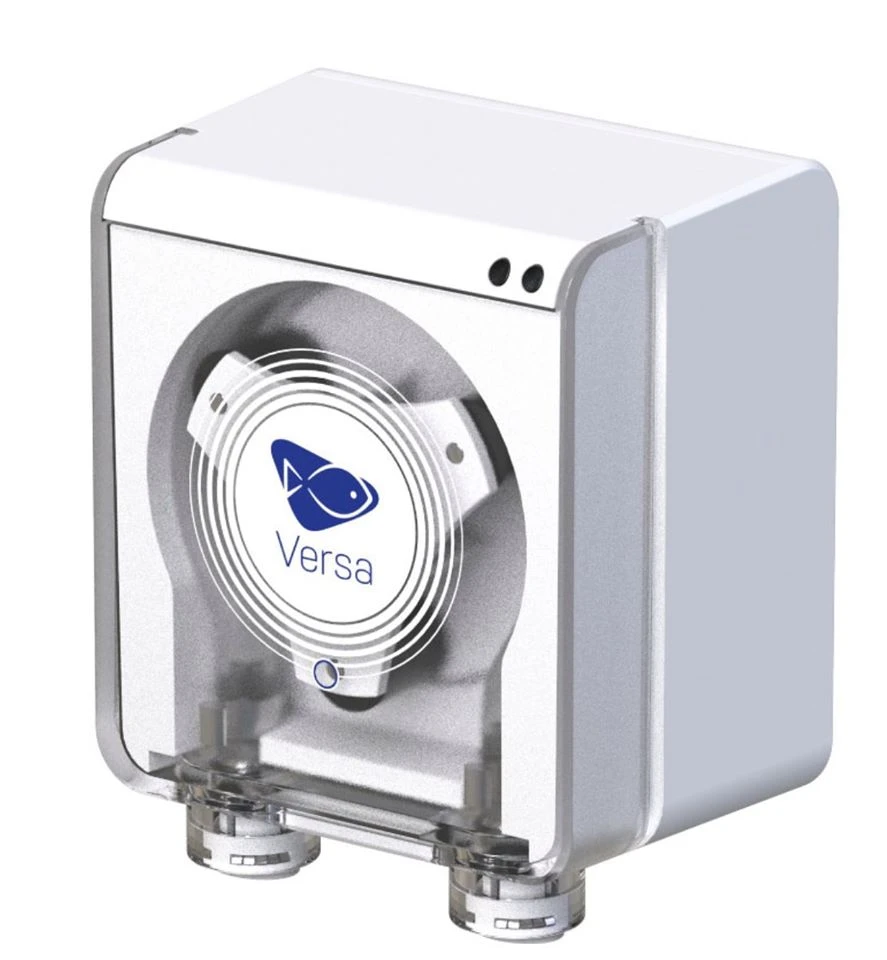

EcoTech VX-1 Single Versa Peristaltic Pump

A precision aquarium pump that does everything.
Dosing, auto top-off, water changes even feeding.

Accurate to 2% or less and capable of several hundred ml. a minute, the Versa™ is the new expectation in multi-purpose pumps.

Specifications:
EcoTech VX-1 Single Versa Peristaltic Pump
Dimensions: 80mmx59.4mmx106.9mm (LxWxH)
Power Consumption: 12w
Universal Input Range: 100-240VAC, 50/60Hz
Peak Inrush Current: 1.3A
Dosing Volume Min: 0.5ul a minute
Dosing Volume Max: 300ml a minute
Connectors: Female PTC & Barbed Adapter – included

Specifications:
EcoTech VXF-1 Four Pack Versa Peristaltic Pump and Base Station
Dimensions: 325.12mmx81.5mmx106.9mm (LxWxH)
Power Consumption: 60w
Universal Input Range: 100-240VAC, 50/60Hz
Peak Inrush Current: 2.0A
Dosing Volume Min: 0.5ul a minute
Dosing Volume Max: 300ml a minute
Connectors: Female PTC & Barbed Adapter – included

Control

Mobius™ is EcoTech’s new equipment control app.

Free for download from your favorite iOS or Android app store (available at the time of Versa™ public launch), Mobius™ turns your smart device into the control center for your EcoTech® equipment.
Simple is an understatement.
In less than five minutes, you can be up and running:

1. Download the Mobius App.
2. Create a Profile.
3. Power on your Versa.
4. Create a tank name.
5. Add the Versa and create an operating program.

Heavy-Duty

Commercial-grade construction using durable ABS plastics and precision gearing make the Versa™ is built to last.
Designed to handle long term continuous use applications, time between servicing is greatly extended with the use of laboratory-grade silicone tubing.

Flexible Installation

Available for individual use or as a four-pack including a Base Station.
Up to four individual pumps can dock to each Base Station.
The Base Station features a consolidated power supply and tactile indexing buttons.

Planetary Gear

The Versa’s drive configuration is optimized for precision and longevity — two essential characteristics for a precise yet robust market-leading peristaltic pump.

MODES

Auto Mode

Auto mode schedules dosing specific to what additive or solution is being dosed.
This mode utilizes standard dosing practices and known water parameter changes in a reef tank based on light cycle and biological activity.
The Versa™ does not determine dosing volume, that requires testing and tuning.
It will however, schedule dosing based on the salt or additive selected.

Continuous Mode



Continuous mode sets a dosing rate (volume/min) that runs when the pump is powered.
Continuous mode is an always-operating dosing mode and needs to be controlled by external means (controller, timer, float switch, etc.).

Manual Mode



Manual Mode allows the user to create a program specifying dosing volumes and or durations.
The Versas variable operational capability allows volume dosing to be carried out a specified rate or over a specified time period.
Up to 30 discrete dosing events can be created per pump in a 24hr period.
The Catch-Up feature allows the Versa™ to correct a dosing difference if the pump is shut down or is interrupted during its daily program.
Safe-guards help protects against some potential dosing issues.
