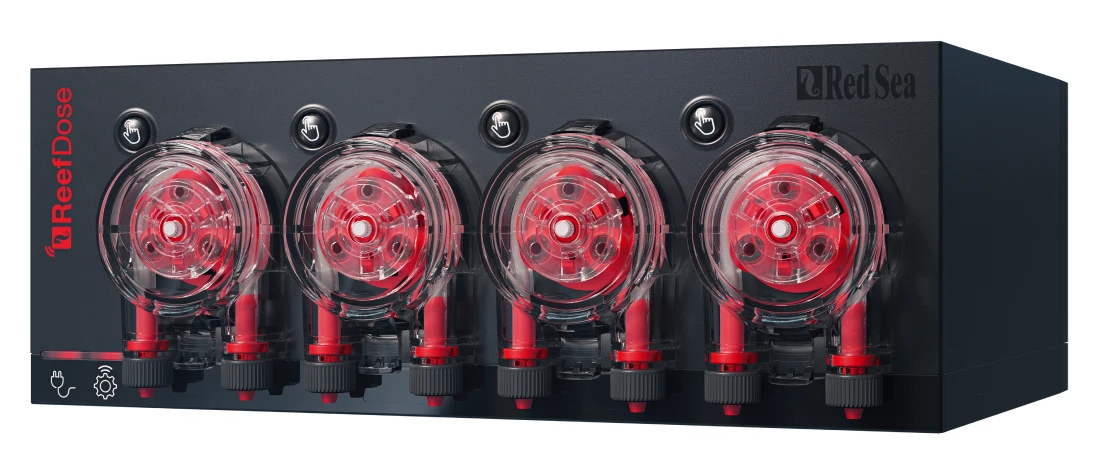

Red Sea ReefDose RD-4

ReefDose is designed and built specifically for the daily supplementing of reef aquariums.
ReefDose uses bespoke (patent-pending) single-drop-accuracy dosing heads together with an advanced controller that provides a full suite of features.

The “Dynamic Dosing Queue” run by the controller combines the desired dosing plans for each head into one coordinated daily dosing schedule for the complete device. The queue is automatically updated after any settings changes, and reschedules any doses that are missed due to unscheduled events such as power outages.

With programming through the ReefBeat App, ReefDose offers multiple options for fully automated, easy-set dosing, or a simple schedule of individually planned doses.

3 Dosing Speeds!
Whisper / Regular / Turbo
In addition to the “Regular” flow rate, you can select the
“Whisper” mode for almost silent operation
“Turbo” mode if you want to get the dosing done as quickly as possible.

The ReefDose is part of Red Sea’s ReefBeat smart ecosystem, seamlessly integrating with all other ReefBeat devices.

Features

• Single drop accuracy dosing heads with a direct-drive planetary gear-motor, provides an accuracy of ± 0.05ml or an average deviation of 0.5% (over 10ml).
• 4 easy-set, smart dosing options for each head, that are automatically combined into one coordinated schedule for the complete device.
• Easy assembly click-on/off dosing heads (no tools or alignment required).
• Automatic delay between the heads to prevent chemical interaction between supplements.
• Daily dose per head of 0.2ml up to 1000ml in increments of 0.1ml.On-demand manual dosing.
• Secured connectors for flexible tubing: OD 5mm – ID 3mm.
• 3 dosing flow rates: Whisper 15ml/min, Regular 30ml/min, Turbo 45 ml/min.
• Motor life expectancy of 10 years – based on 250ml/day/head.

ReefBeat app

• One interface for all of Red Sea’s smart devices.
• Easy set-up and operation.
• On-line monitoring and notifications.

ACCESSORY KIT – Sold Separately

Deluxe 4-colour Accessory Kit
Everything requiered to connect a dosing pump in one convenient kit.
Available in 2 colour versions ( and ), providing 8 unique colours for easily identifying a full range of supplements from container to dosing tip.

Each kit contains:

• Air-resistant TPE coloured tubes.
• 12m tube.
• Tube holder with 4 quick connect tips.
• Snap-open tube organiser (3 units).

OPTIONAL ACCESSORIES – Sold Separately

Tube Holder

Tube holder with 4 quick connect tips.

Tube Organiser

Snap-open tube organiser (3units)
